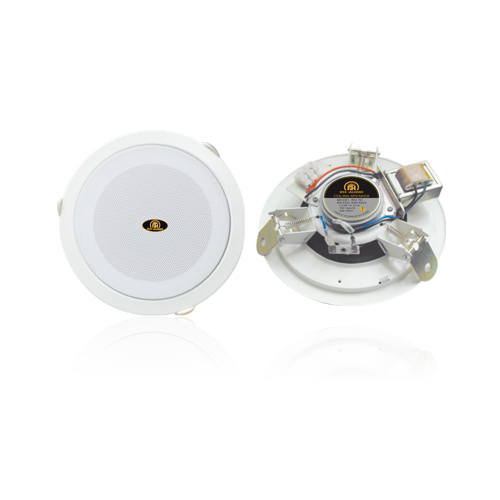

4inch Compact Metal 6W Speaker In Ceiling RH-T41

※ Metal baffle,metal grille with Fireproof feature.
※ Full-range 4" dynamic speaker.
※ 100 V line transformer features two taps for 3 W and 6 W outputs.
※ This technique of line input 100V reduces signal losses on a longer distance and allows
easy parallel connection of multiple loudspeakers.
※ Frame-mounted spring-loaded clamps provide secure,low-noise connections and easy installation.
※ Attractive steel alloy finish with off-white grille suits any decor.
  • Description
  • Specification
The RH-AUDIO RH-T41 employs 4 inch speaker drive with two power output taps 3W and 6W using built-in 100V transformer. RH-AUDIO Ceiling Speaker RHT41 Transformer

RH-AUDIO Ceiling Speaker RHT41 Metal Grille & Baffle
This model is designed with metal baffle and grille enjoying ultra slim speaker's construction designed for low installation depth.

RH-AUDIO Ceiling Speaker RHT41 Clamps

Quick fit clamps allow easy and quick mounting into false ceilings. Its high sensitivity full range, light paper diaphragm and high efficiency magnet are the reason of high performance in middle sound frequency, ideal choice in public address systems such as shopping malls, hotels, coffee bars etc.


Tips of Installation:
RH-AUDIO Ceiling Speaker RH-T41 installation

                                   • Retract the 2 Snap Clamps on the speaker into          • When Clamp Arms press against the ceiling,
                                   their open position.Then push the speaker up              the Snap Clamps will rotate and clamp down
                                   through the ceiling opening.                                          closed to the ceiling surface.

Specifications
RH-AUDIO Ceiling Speaker RH-T41 Size

Model

RH-T41

Rated Power

3W/6W

Line Voltage

100V

Frequency Response

110Hz-15KHz

Sensitivity(1w,1n)

90±3 dB

Hole for mounting

Φ155mm

Dimension

Φ180*50mm

Finished

Baffle & Enclosure;Grille & Mounting Hardware Steel alloy.

Mounting Method

Frame-mounted spring-loaded clamps

Speaker Driver

4" full range

Weight

0.70Kg
