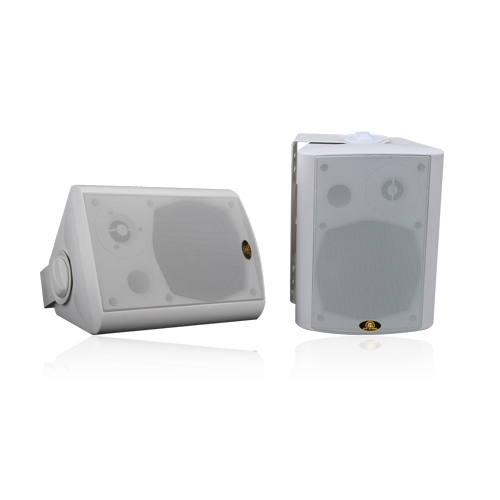

IP Based Speaker RH5010

※ Built-in Power Saving Circuitry.
※ Integrated network decoding module with IP address.
※ IP address reset function.
※ Supports network volume.
※ Built-in 2-channel digital stereo amplifier (Class D) 8Ω 20W*2.
※ 2-way speaker units with woofer 5" + tweeter 1".
※ With one 6.5mm MIC jack input.
※ Unbalanced local audio input via RCA connectors.
※ Individual volume control for audio input & microphone input.
※ 70V/100V line voltage signal input available.
※ 2.4G wireless microphone is optional.
※ “U” shaped adjustable mounting bracket is supplied.
※ Compact size (HxWxD) 242 x182 x162 mm.
※ Net weight: active speaker 2.50 kg, sub passive speaker 2.15 kg.
  • Description
  • Specification
The IP Based Speaker RH5010 consists of one main active speaker & one sub passive speaker,the main active speaker "L" with built-in 2-channel "L&R"stereo amplifiers 20W*2,with Phoenix connector ready to be connected to the sub passive speaker "R".

With this IP based speaker you will enjoy a quicker and more flexible installation than traditional wired analog systems.

It's easier than ever to install a very wide paging or intercom system using your existing Ethernet network,this speaker can be placed wherever you have a network drop without need for long speaker wire connections from a large central amplifier.


The IP based speaker offers an ideal solution for some venues that need to do large-scale paging and multi-zoned background music across multiple facilities and locations with complex distribution and scheduling needs such as government agencies, schools, factories,commercial buildings,residential areas and hospitals etc.

White & Black color available.

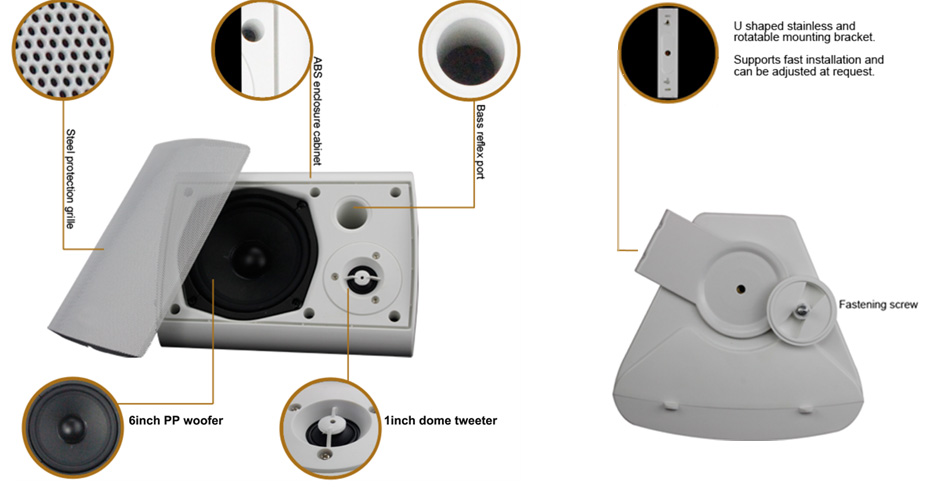

Hardware Details:

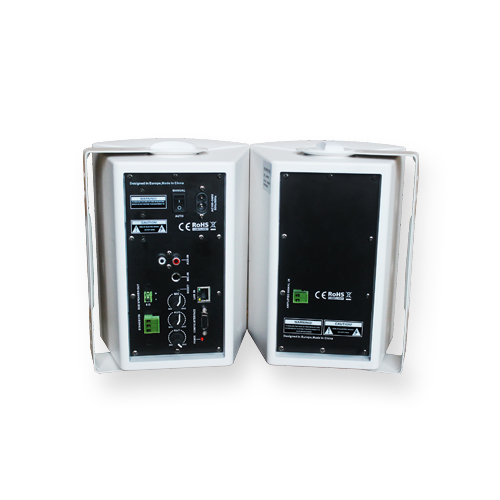

Reference Connection:

RH-AUDIO IP Wall Mount Speaker Connection



Specifications

Model

RH5010

Network Input

Standard RJ45 x 1

Protocol Support

TCP/IP UDP IGMP (group broadcasting)

Rated Power

20W x 2 (8Ω)

Audio Format

MP3/MP2

Sampling Rate

8K-48KHz

Transmit Speed

10Mbps

Audio Format

16 digit stereo CD tone

Frequency Output

20Hz~16KHz

T.H.D

≤0.3%

S.N

>70dB

Working Temperature

5℃ ~40℃

Power Saving Mode

"AUTO”Power Saving Mode: Automatically switched on or  switched off .

Power Consumption

≤50

Power Supply

~110-240V 50-60Hz

Dimension

(HxWxD) 242 x182 x162 mm

Net Weight

Active speaker 2.50 kg + Passive speaker 2.15 kg
